主要規格 : Remote Line Power LAN-to-LAN Extension over DSL Line

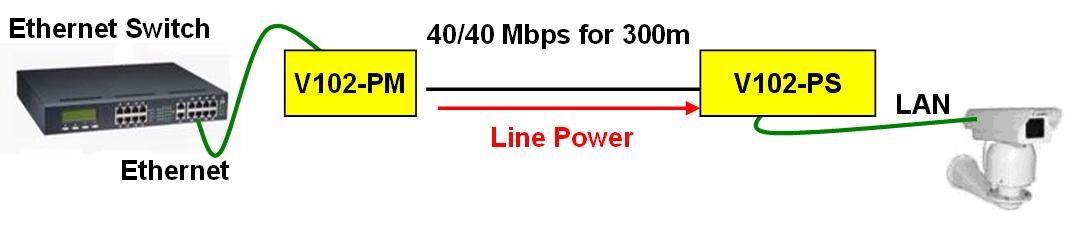

V102-PM & V102-PS form a pair of remote line-powered LAN Extender providing a broadband transmission up to 40/40 or 20/20Mbps for downstream/upstream over single pair of copper line for point-to-point Ethernet connectivity. With remote line power supply from V102-PM, the V102-PM & V102-PS support a connection distance up to 300 meters with 40/40Mbps data rate. Users may also select a 20/20Mbps date rate up to 400 meters .

With plug and play features and minimum installation time, a pair of V102 Series offers a cost effective solution for bandwidth-hungry applications such as video streaming and FTTB over single twisted pair telephone line.

Features:
ITU-T G.993.1, G.993.2 VDSL/VDSL2 and SG15Q4 DMT Compliance
40/40Mbps DownSream/UpStream for distance up to 300 meters
Remote Line Power
Trellis Coding support up to 1024 Discrete Multi-Tone (DMT) bin
Selectable Fast and Interleaved modes
Selectable fixed data rate and fixed SNR margin
Auto MDIX for 10/100 BaseT Ethernet LAN Ports
3 Dip Switches for Configurations
Low-Latency for Video/Voice/Data applications

Specifications:
ITU-T G.993.1/2, SG15Q4 DMT Compliance
Trellis Code with 1024 DMT bins
Data Rate: 40/40 or 20/20Mbps
RJ-11 Connector x 1

LAN Interface:
Auto-Detection for 10/100 BaseT and Half/Full duplex
Fully compatible with IEEE802.3/IEEE802.3u
Automatic MDIX Function
RJ-45 Connector x 1

LED Indicators:
POWER: Power is ON
DSL: VDSL Loop Connection Status
LAN: Data Activity of LAN Port
PM: Line Power is ON

Physical Dimension:
Desktop: 120 x 90 x 28 (mm)

Power:
12VDC 2.5A

Operating Environment:
Humidity: 5% to 95% non-condensing
Temperature: 0 ~ 50 degree C

Regulatory Compliance:
FCC Rules Part 15 Class A
CE
