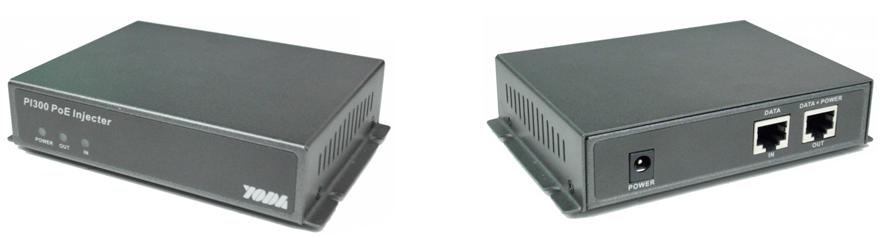

主要規格 : 40W High Power PSE Injector
PI300 is a high power, PSE Power Injector for use in Power over Ethernet systems. With Ethernet Input (data only) port and Output (data + power) port, PI300 may deliver up to 40 Watts over existing LAN cable to power up PoE PD devices for power hungry PoE applications such as Wireless APs, Security cameras and IP Phones. The internal current limit, short-circuit and overload protection are implemented to provide up to 40W of PSE output power.
PI300 can work in pair with PR100, a PoE Repeater, to extend Ethernet connectivity another 100m with power over Ethernet capability for high power PD devices, such as 18W Pan-Tilt-Zoom IP Camera. It forwards both Ethernet and PoE for another 330ft (100m) using an innovative power-processing scheme and multiple units can be deployed in series for even longer distances, with no degradation in network speed or latency. PR100 itself is powered by PI300 and so requires no separate power connection in the middle of the cable, making it extremely easy to connect and power IP cameras two or three times further than previously possible without going to fiber or installing external power sources.
Advantages:
- Max 40Watt High Power PSE Power Injector
- Forwards Power over Ethernet (PoE) to remote devices
- DC INPUT: 19VDC
- Ethernet 100Mbps Wire Speed
- Simple to install – Plug & Play
Interface
Network Interface
IEEE 802.3x, Auto-Detection for 10/100BaseT and full/half duplex
Standard Straight-through, or Cross-over CAT 5 cable
Automatic MDIX function
RJ-45 Connector x 2
LED
POWER: Power is ON
LAN OUT: Data Activity of LAN OUT Port
LAN IN: Data Activity of LAN IN Port
Dimensions
WxDxH: 120 x 90 x 28 (mm)
Environmental
- Operating Temperature: 0°C to 50°C
- Operating Humidity: 5% to 95% non-condensing
Power Requirements
INPUT: 19VDC
OUTPUT: 56VDC at full load
PoE Power: 40 Watt Maximum
Certification
Conform to CE/FCC requirements
Application Diagram:
